Use a practical buyer checklist to evaluate cam switch vs selector switch inputs, documentation, approval controls and the exact rotary cam switch route.

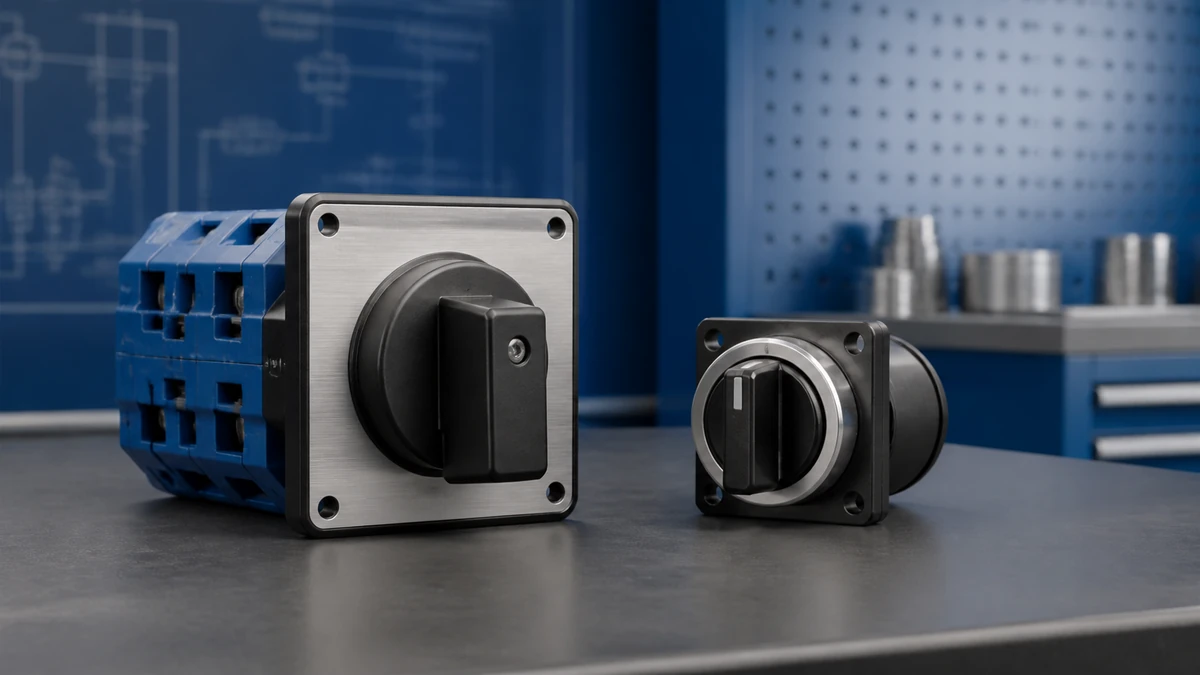

PorShi, MuxiFor a cam switch vs selector switch decision, choose the device by role: use a rotary cam switch route when the manual operator must change power-circuit connections or a defined multi-contact switching program; use a selector switch route when the operator mainly sends a command to a relay, PLC, contactor coil, drive input or indicator circuit.
The practical decision is not “which knob looks right”; it is whether the device must switch the power path or only create a control command. A cam switch route is usually considered when the handle position directly changes several electrical contacts in a planned sequence. A selector switch route is usually considered when the panel only needs an operator interface for a control circuit.
If the device is expected to connect, disconnect, reverse, change taps or select sources in the working circuit, treat it as a power-switching specification. The buyer should ask for the exact contact program, rating evidence and mounting details for the proposed model.
This is where a rotary cam switch may be commercially attractive: one rotary device can be built around a defined switching sequence, rather than adding separate operators for every circuit state.
If the handle only tells a PLC input, relay, contactor coil or drive input which mode is requested, the selector switch route may be simpler. In that case, the downstream control design performs the electrical action.
The procurement risk is buying a control operator for a duty that actually requires switching a load circuit, or buying a power-switching assembly when the application only needs a low-energy command interface.
| Buyer question | Cam switch route | Selector switch route |
|---|---|---|
| Does the device carry load current? | Possible, if the exact model, rating and duty match | Not assumed; check exact contact blocks and ratings |
| Does one handle need to change several contacts at once? | Often a strong fit | Possible only within the operator/contact arrangement |
| Is the function mainly Auto/Off/Manual, Local/Remote or Mode Select? | Possible, but may be more than needed | Often the cleaner control-panel route |
| Is a contact sequence drawing required? | Usually critical | Usually simpler, but still verify contact behavior |
| Is the decision mainly about panel operator interface? | Not the first route unless the contact program needs it | Usually the first route |
A cam switch is the better commercial route when the buyer needs a defined manual switching program, not just a named handle position. The value is in the contact arrangement, contact timing, pole count and duty rating for the specific circuit.
A cam switch can be specified for applications where multiple contacts change together through several positions. This can reduce wiring complexity in some panel layouts, but only after the contact diagram confirms the required sequence.
For available product families, mounting styles and model-level options, review the Shieldhz Faixa do interruptor de came rotativo rather than treating all rotary switches as interchangeable.
Use a cam switch review when the application includes:
Do not approve the route from the function name alone. Ask for the contact diagram, ratings and mounting drawing for the exact model under consideration.
A selector switch is the better commercial route when the panel needs a human command input and the electrical work is performed elsewhere in the control system. It is commonly considered for mode selection, permissive selection or local operator commands, with final suitability dependent on the exact operator, contact blocks and circuit design.
A selector switch can be appropriate where the input is read by a relay, PLC, safety controller, drive input or contactor coil circuit. The key question is whether the operator’s contacts only carry the control-circuit duty stated in the product documentation.
Typical control-interface decisions include:
Do not assume a selector switch is suitable for power switching because the handle has similar positions to a cam switch. The exact contact rating, utilization category, wiring diagram and manufacturer documentation must match the buyer’s circuit.
A selector switch can be the lower-complexity option when the power switching is already handled by contactors, drives or other equipment specified for that role. It can be the wrong option if the panel drawing expects the operator itself to carry and change the working circuit.
The correct purchase route depends on AC/DC duty, voltage, current and utilization category before it depends on unit price. Two devices with similar handle positions can have very different allowable duties depending on their exact construction and documentation.
Do not compare “cam switch” and “selector switch” as generic rated objects. Compare exact part numbers, drawings, datasheets and certificates against the buyer’s circuit.
For rotary cam switch sizing and specification inputs, use the rotary cam switch selection guide as a foundation, then verify the current model documentation for the specific purchase.
IEC describes the IEC 60947-3 scope as switches, disconnectors, switch-disconnectors and fuse-combination units within stated distribution- and motor-circuit AC/DC limits. That scope statement does not automatically validate every device for every buyer application.
For purchasing, request the certificate or declaration package relevant to the exact model and destination market. Also check whether the buyer’s end product, panel standard or local acceptance process requires additional evidence.
| Specification item | Por que é importante | Buyer action |
|---|---|---|
| AC or DC circuit | Contact behavior and ratings can differ | State the supply type clearly |
| Tensão | Determines insulation and switching requirements | Match to the actual circuit voltage |
| Atual | Determines thermal and switching duty needs | Use operating current and required margin policy from the buyer |
| Categoria de utilização | Connects rating to duty type | Request the category shown in current documentation |
| Frequência de operação | Affects product selection and service expectations | Provide realistic operating pattern |
| Mercado de destino | Documentation requirements can vary | Request the required certificate package before order release |
The safe sourcing decision is to specify what each contact does in every handle position. Position labels such as 0-1-2, I-0-II or MAN-OFF-AUTO are not enough by themselves.

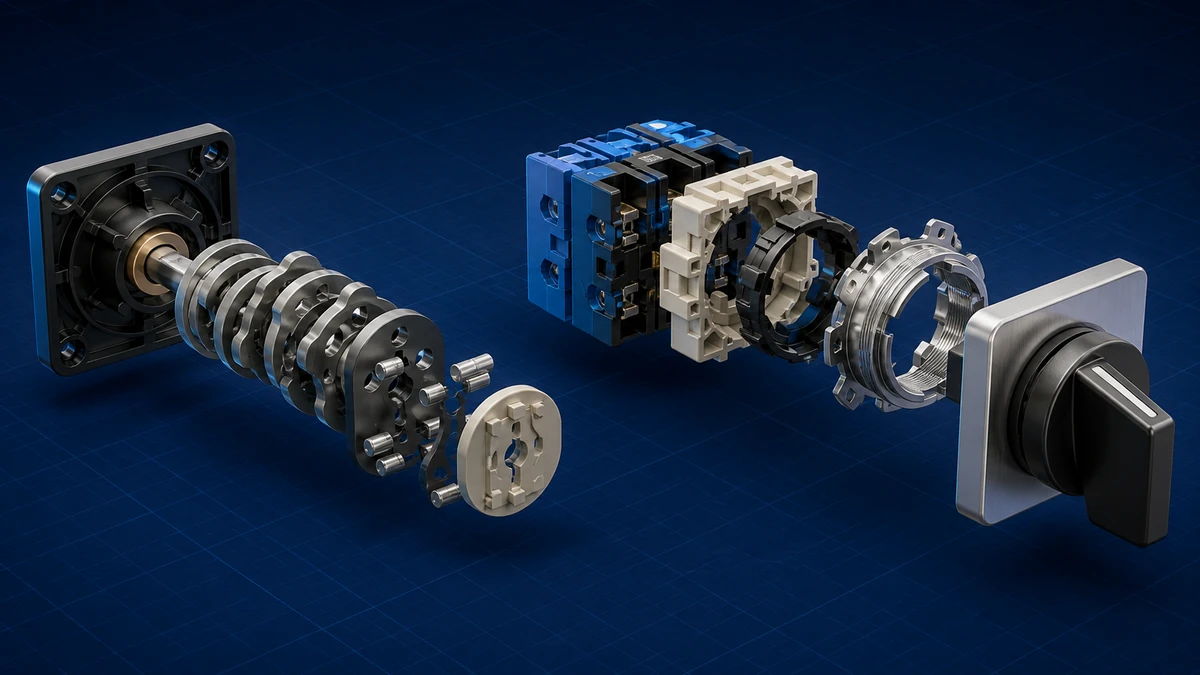

A rotary cam switch may have several contact stages behind one handle. The buyer must confirm how many poles are needed, which contacts open or close in each position and whether any positions require overlapping or non-overlapping contact behavior.
For a deeper foundation on these terms, use the Shieldhz positions, poles and contact stages guide rather than rewriting the whole switch-construction explanation in the purchasing note.
Before requesting price or substituting a model, prepare:
If these details are missing, the quotation may be based on an assumed program. That creates rework risk when the panel drawing, wiring schedule or acceptance documentation is later checked.
Motor-control switching requires a separate engineering check because the duty is not the same as a simple indication or command input. A rotary cam switch may be considered for certain manual motor-control functions only when the exact model, circuit and duty rating match the application documentation.
A cam switch route may be reviewed for manual forward/reverse, star-delta, pole-change or local motor circuit selection where the required contact sequence can be built and documented. The purchase decision should be based on the circuit diagram and rated duty, not the function name alone.
For motor-specific considerations, refer to the rotary cam switch motor-control guide and then confirm the current documentation for the proposed model.
If the motor is controlled by contactors, a soft starter or a drive, the front-panel selector may only need to send mode or direction commands. In that case, a selector switch can be the better operator choice while the downstream equipment performs the power switching.
A useful sourcing question is: “Does the handle switch the motor circuit, or does it request another device to switch the motor circuit?” The answer usually determines which product family should be quoted first.
Shieldhz confirms a rotary cam switch route by checking the buyer’s required switching function, electrical duty and mechanical installation before proposing a model. Final suitability is confirmed against current product documentation and the buyer’s application.
For a practical pre-quotation review, provide:
The quotation stage should not end with a price line only. The engineering and sourcing teams should review the proposed function drawing, part number structure, mounting information and documentation package.
Use o rotary cam switch functions guide to align function language before requesting a custom or semi-standard contact program. Then confirm the issued drawing and datasheet for the exact product offered.
The lower-risk purchase is the route that matches the electrical role, documentation requirement and panel design with the least assumption. A selector switch may cost less and simplify the operator interface when only a command is needed. A cam switch may reduce added components or wiring steps when the manual switching program itself is required.
| Procurement factor | Cam switch route | Selector switch route |
|---|---|---|
| Main value | Defined multi-contact switching program | Operator input for a control circuit |
| Engineering document needed | Contact program and rating evidence are central | Contact block arrangement and operator details are central |
| Substitution risk | High if contact sequence is not identical | High if operator action or contact rating differs |
| Panel impact | May consolidate several switching actions | May be compact for command selection |
| Quotation clarity | Requires circuit/function detail early | Requires operator style and contact details early |
| Best review owner | Electrical design plus sourcing | Controls design plus sourcing |
Use this shortlist process before sending the RFQ:
This approach keeps the commercial conversation focused on the real decision: whether the buyer needs a switching device with a defined contact program or a control operator for a downstream circuit.
O cam switch vs selector switch decision should be made by circuit role. If the handle must directly change a power-circuit or multi-contact switching program, evaluate a rotary cam switch route with model-specific ratings and a confirmed contact diagram. If the handle mainly sends a mode, permission or direction command to another control device, evaluate a selector switch route.
For procurement, do not approve a model from the handle positions alone. Confirm duty, contact behavior, mounting and documentation against current product information and the buyer’s actual application before releasing the order.
No. They can look similar from the front of a panel, but the purchasing decision is different. A cam switch route is usually about a defined switching program behind the handle, while a selector switch route is usually about sending a control command.
Do not assume that from the name or handle shape. Some operator contact arrangements may have documented ratings for specific duties, but suitability depends on the exact model, datasheet, utilization category and buyer circuit.
Yes, a cam switch can be specified for control-circuit functions when its contact program is useful and the exact model documentation matches the duty. However, if the application only needs a simple command input, a selector switch may be the more straightforward route.
Send the switching function, AC/DC duty, voltage/current, utilization category, pole count, contact program, handle positions, mounting route, environment and required documentation package. A schematic or open/closed contact table is especially useful.
They may be reviewed for certain manual motor-control functions when the exact model, contact sequence and rated duty match the application. Do not approve the device from a motor-control function name alone; verify the drawing and documentation.
No. Selecting an emergency-stop operator or any panel operator does not validate a complete machine safety function. The safety function depends on the full machine risk assessment, circuit architecture, components, diagnostics, installation and validation process required for the buyer’s application.
