Weatherproof SH30 enclosed isolator switch for pumps, HVAC equipment, outdoor machinery, and local service disconnects from 20A to 125A.
Choose H1, H3, or H5 by current group, cable entry, mounting space, and duty category. Confirm the drawing and document package before quotation.
The SH30 weatherproof format combines the load isolator, enclosure, rotary handle, and cable-entry layout in one compact local disconnect inside the wider isolator switches range.
Wall-mount enclosure protects the switch body and keeps the operator, wiring route, and maintenance point easy to identify.
Red/yellow front handle gives clear ON/OFF operation; confirm padlock, label language, and market certificate needs during quotation.
Send current, poles, cable gland direction, quantity, market, and required files before quotation to avoid enclosure or drawing mismatch.

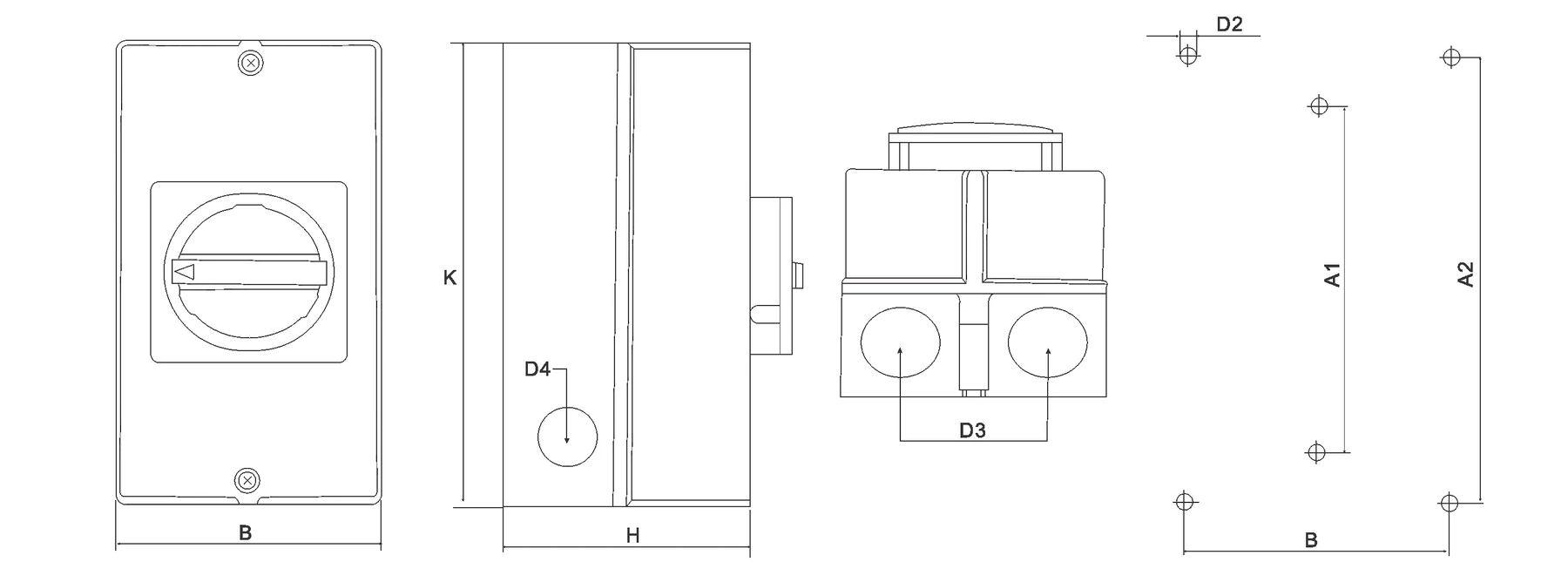

Use the table to compare box depth, cable-entry position, and mounting holes by SH30 model group before layout, drilling, or gland selection.
| Model | D3 | D4 | H | B | K | A1 | A2 | Mounting |
|---|---|---|---|---|---|---|---|---|
| SH30-20/25/32 | 23 | 19 | 82 | 85 | 160 | 150 | – | D2 4.2 |
| SH30-40/63 | 29 | 23 | 93 | 100 | 190 | 178 | – | D2 4.2 |
| SH30-80/100/125 | 37.5 | 23 | 107 | 145 | 250 | – | 229 | B 124 / D2 6.5 |
Use the table for SH30 current groups, 240V/440V references, AC duty rows, cable-entry notes, and mounting checks.
Compare with the waterproof isolator box guide, SHP waterproof isolator boxes, and SH30 load isolator switches; reference IEC 60947-3.
| Item | Catalogue reference | Selection note |
|---|---|---|
| Model group | SH30-20/25/32, SH30-40/63, SH30-80/100/125 | Match current rating to load and enclosure size. |
| Box code | H1 / H3 / H5 | Align the weatherproof box size with the drawing. |
| Utilization category | AC-21A, AC-22A, AC-23A, AC-3 | Confirm A/kW value from the selected model row. |
| Cable entry | D3 / D4 in the dimension table | Use these values for gland selection and cable routing. |
| Mounting | H, B, K, A1, A2, D2 references | Check wall mounting clearance and hole spacing. |
Confirm datasheet, dimension drawing, wiring diagram, certificate copy, rated voltage, and duty category before production. Include load type, cable gland size, label language, and application.
| Parameter | Value |
|---|---|
| Product Type | Weatherproof enclosed load isolating switch |
| Current Range | 20A, 25A, 32A, 40A, 63A, 80A, 100A, and 125A catalogue groups |
| Poles | 3P shown; other pole arrangements by order |
| Protection | IP66 marking shown on product body |
| Standard | IEC 60947-3 switching function |
| Mounting | Surface wall mounting |
| Material / Enclosure | Weatherproof enclosed housing shown in catalogue; confirm material and UV/cleaning exposure by project |
| Handle | Red rotary handle with yellow front plate |
| Certifications | CE marking shown; certificate copies should be confirmed by selected model and target market |
| Rated Working Voltage | Catalogue table references 240V and 440V groups |
| Utilization Categories | AC-21A, AC-22A, AC-23A, and AC-3 rows shown in catalogue technical data |
| Cable Entry | D3 and D4 drawing references should be checked for gland selection |
| Documents | Datasheet, dimension drawing, and wiring diagram can be requested for approval |
