Use a practical buyer checklist to evaluate mushroom emergency stop button inputs, documentation, approval controls and the exact push button, selector switch or emergency-stop operator route.
PorShi, MuxiUse a mushroom emergency stop button when the control point must be highly visible, easy to strike quickly, and intentionally reset before normal operation resumes. Treat the mushroom head as an actuator-format decision inside a larger machine control design, not as proof that the complete emergency-stop function is valid.
A mushroom emergency stop button is appropriate when the control station needs a large, protruding actuator that can be identified and operated quickly. The commercial decision is about the operator format, reset method, visibility, and compatibility with the panel design.
O ISO 13850 overview describes ISO 13850 as setting functional requirements and design principles for the emergency-stop function. This article uses that boundary carefully: selecting a mushroom-head operator alone does not prove or validate a complete machine safety function.
The mushroom head changes how the operator is seen and actuated. Compared with a flush or standard push button, it presents a larger target and a clearer visual control point.

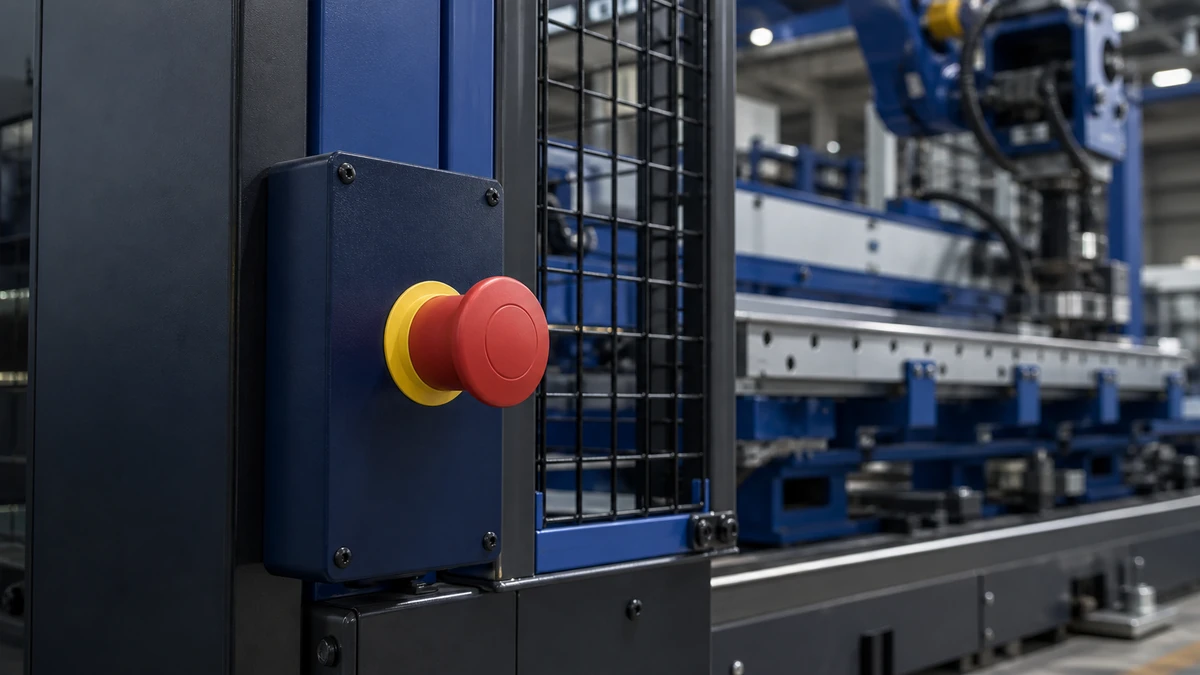

This is useful on machine frames, control panels, local operator stations, conveyor zones, packaging machinery, material-handling equipment, and similar industrial panels where the buyer wants the stop command to stand apart from routine start, jog, or selector controls.
The mushroom-head shape does not define the full circuit architecture, diagnostic approach, risk reduction, or safety validation. Those items depend on the complete machine design, control system, documentation, and applicable destination-market requirements.
A buyer should therefore avoid treating the operator as a standalone safety-performance component. The operator is one specified panel device that must match the machine’s electrical and mechanical design.
Select the mushroom-head actuator style first because it affects visibility, reset behavior, mounting space, and the way the device is used by operators and maintenance teams. Once the actuator route is fixed, contacts, legends, lamps, and documentation can be matched to the exact product series.
For available actuator families and related panel-control products, review the push button and indicator light range before narrowing the quotation route.
A mushroom emergency stop button is normally chosen for a distinct stop command, while a standard push button is better suited to routine machine functions such as start, reset, inch, jog, or acknowledge. The difference is not only electrical; it is also visual and ergonomic.
| Buyer decision | Mushroom-head operator | Standard push button |
|---|---|---|
| Primary use case | Distinct stop or emergency-stop control point | Routine command or signal input |
| Visual priority | High visual presence on the panel | Lower visual dominance |
| Actuation style | Large surface for rapid hand actuation | Smaller actuator for regular operation |
| Reset behavior | Often maintained with deliberate release method, depending on model | Momentary or maintained, depending on model |
| Specification risk | Must be checked against emergency-stop layout and documentation requirements | Must be checked against routine control function and circuit design |
A maintained mushroom operator stays actuated until it is reset by the specified release method. Twist-release and key-release formats are common decision branches, but the exact availability depends on the selected model and series.
Choose the release method based on who is allowed to reset the control point, where the operator is mounted, and how the maintenance procedure is written. Do not assume that changing the reset format leaves the rest of the device specification unchanged.
Specify reset behavior from the intended operating procedure, not from appearance alone. The buyer should decide whether reset is a normal operator action or a controlled maintenance action before freezing the part number.
Twist-release is typically considered where local operators are expected to restore the actuator after the event has been assessed according to the machine procedure. It is simple to recognize and does not require a key, but it still needs to match the buyer’s control philosophy.
Use this route only after confirming the exact operator action, rotation direction if relevant to the model, contact reset behavior, and legend requirements from current documentation.
Key-release is considered where the buyer wants reset access to be limited to authorized personnel or a defined maintenance role. It may be useful where restarting control preparation is part of a controlled procedure.
Key format, key retention behavior, key code options, and availability are exact-model dependent. They should be confirmed from the datasheet and quotation documentation before procurement.
Reset-behavior checklist:
Choose the contact arrangement from the electrical schematic and control design. The mushroom-head actuator does not automatically define how many normally closed or normally open contacts are required.
For contact terminology and selection background, use the NO and NC contact guide instead of relying on actuator appearance.
Many emergency-stop control designs use normally closed contact paths, but the quantity, separation, monitoring method, and wiring route are machine-design dependent. The required arrangement should come from the control-system designer’s schematic.
Do not assume that one mushroom button equals one fixed contact configuration. Some applications may require additional contact blocks or a different operator/contact package, depending on the exact device family.
A normally open auxiliary contact may be specified for signalling, indication, PLC input, or status feedback, depending on the control design. This contact should be treated as an auxiliary function unless the buyer’s validated design states otherwise.
| Control requirement | Contact decision to confirm | Documentation to check |
|---|---|---|
| Stop command input | Number and type of NC contacts | Electrical drawing and product datasheet |
| Status signal | Whether an NO auxiliary contact is required | PLC/input schematic and I/O list |
| Panel indication | Whether contact or lamp accessory is needed | Control panel drawing |
| Replacement purchase | Exact contact block type and mounting interface | Existing part number, drawing, and datasheet |
| New build quotation | Complete contact stack and operator part route | Machine schematic and quotation confirmation |

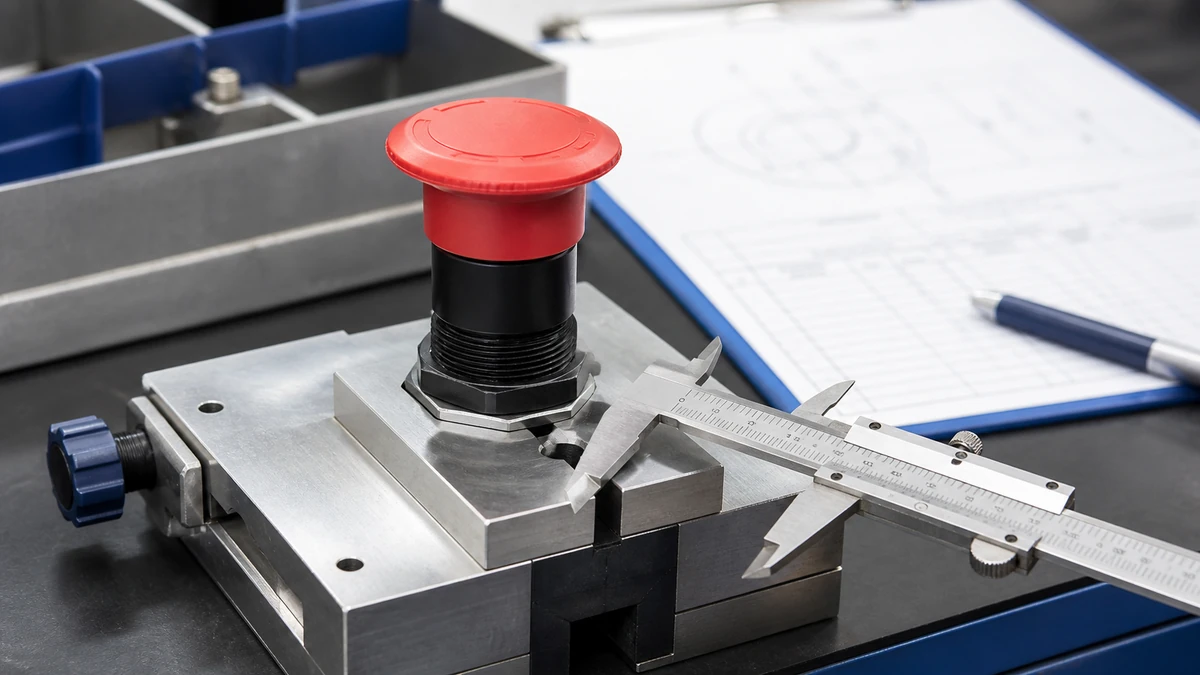

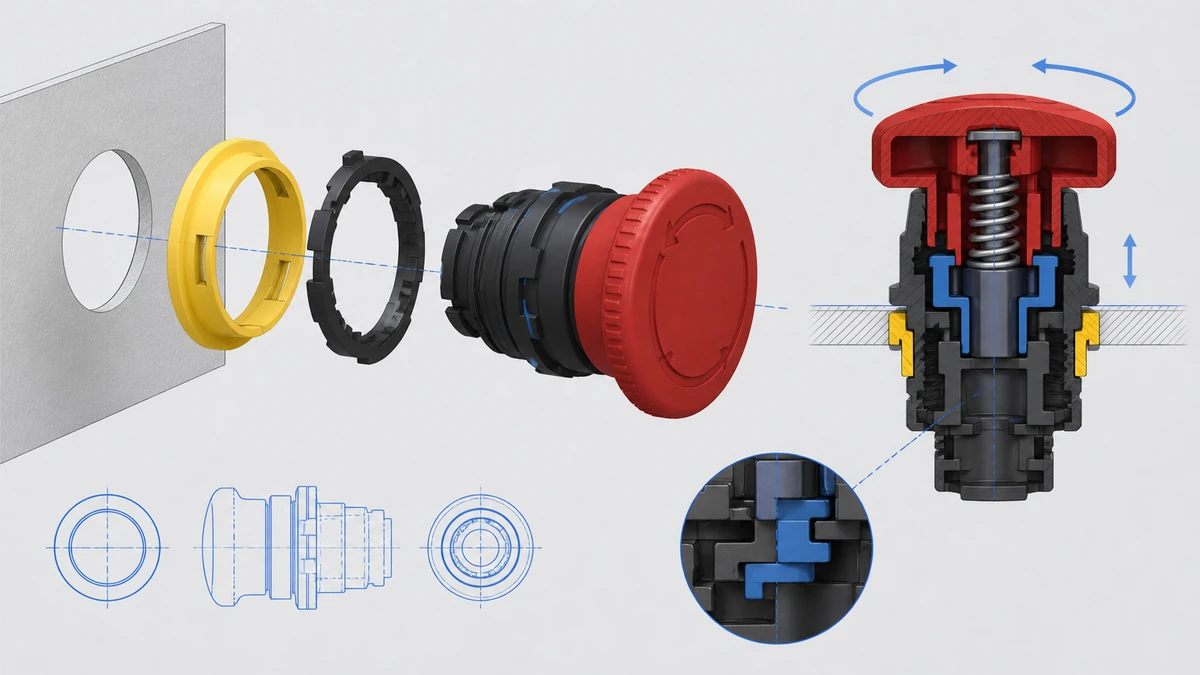

Confirm the panel cutout, mounting method, and rear-panel depth before selecting the final part number. A mushroom emergency stop button is a visible front-panel device, but many specification errors happen behind the panel.
For accessory coordination, use the contact block and legend plate guide when checking the operator, contact blocks, lamp elements, and marking parts as one assembly.
Panel cutout size is series dependent and must be verified from the current drawing. Do not assume interchangeability between different actuator families, mounting systems, or enclosure designs.
The buyer should confirm panel thickness, cutout diameter, anti-rotation features if used, rear clearance, and spacing from adjacent devices. These factors affect installation and serviceability.
Legend plates and contact blocks should be matched to the exact operator series. If an illuminated operator or separate indicator is required, confirm the lamp voltage, color, lens style, and wiring method from the datasheet.
Panel-integration checklist:

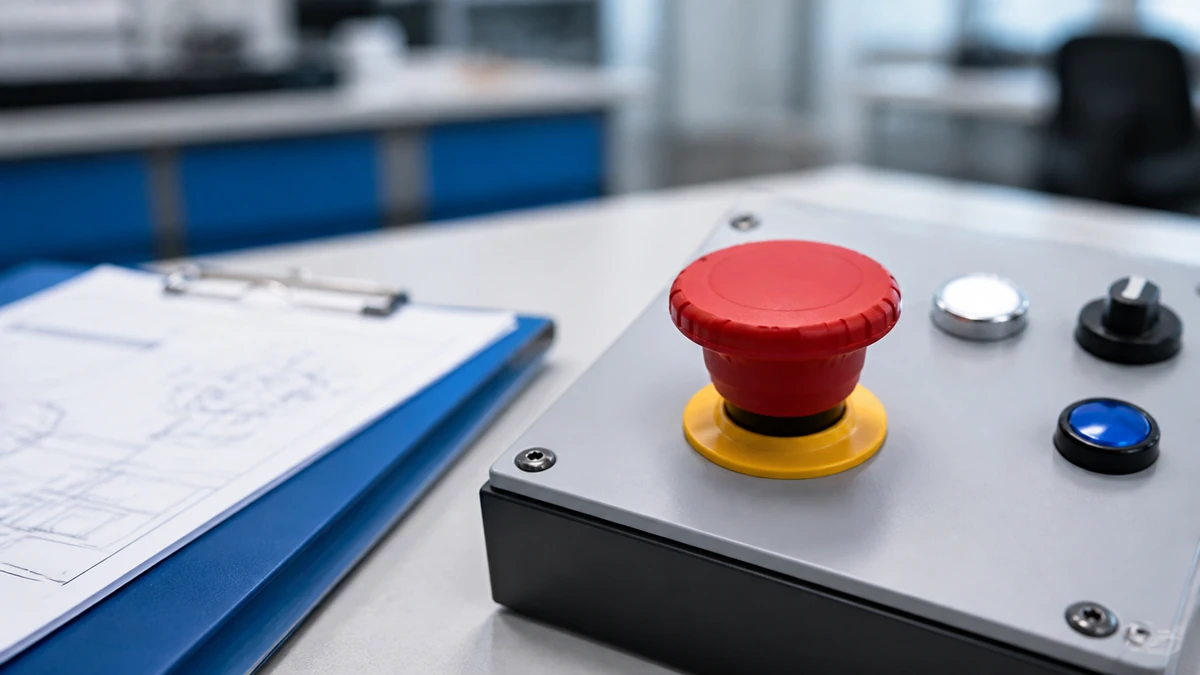

Plan the color, marking, and panel layout before ordering because the operator must be recognizable in its installed context. A correct part number can still be poorly specified if the surrounding layout creates confusion.
For placement decisions involving emergency-stop operators and selector controls, use the emergency-stop and selector layout guide as a focused layout reference.
Emergency-stop operators are often specified with a red mushroom actuator and a contrasting legend area, but the exact color and marking requirement must be confirmed against the buyer’s machine standard, destination market, and documentation package.
Specify legend wording, symbol requirements, language, plate color, and whether the marking is printed, engraved, or supplied as a separate accessory. These details should be frozen before the purchase order.
Avoid placing the mushroom emergency stop button where it can be mistaken for a routine stop, mode selector, reset, or start control. The layout should separate high-priority stop commands from normal operating controls.
Layout action list:
Check the installation environment and document package before freezing the part number. Ratings, enclosure compatibility, materials, certificates, and accessories are exact-model and destination-market dependent.
The same actuator concept can be specified differently for indoor panels, washdown-adjacent areas, dusty zones, outdoor cabinets, or high-cycle operator stations. The buyer should describe the actual enclosure and service environment instead of requesting a generic mushroom button.
| Environment input | Por que é importante | Buyer evidence to provide |
|---|---|---|
| Panel location | Affects enclosure and operator exposure | Machine layout or enclosure drawing |
| Dust, moisture, cleaning | Affects sealing and material selection | Environmental description |
| Ambient conditions | Affects component selection route | Site or machine specification |
| Operator frequency | Affects mechanical selection review | Duty description |
| Mercado de destino | Affects document and certificate request | Shipping destination and buyer standard |
| Replacement or new build | Affects part matching | Existing part number or new schematic |
A commercial quote should be based on a defined document set. At minimum, the buyer should request the current drawing and datasheet for the exact model under consideration.
Certificate needs should be stated early and tied to the destination market and buyer application. Availability and content of certificates depend on the exact model and current documentation package.
Documentation checklist:
Shieldhz confirms the operator route by checking the buyer’s function, mechanical fit, electrical configuration, marking, and documentation requirements before quotation. Final suitability is confirmed against current product documentation and the buyer’s application.
For baseline terminology before specifying a model route, refer to Noções básicas sobre interruptores de botão.
The confirmation process starts with the machine function and destination market. Shieldhz then checks whether the buyer needs a push button, selector switch, or mushroom emergency-stop operator, and whether the operator action is momentary, maintained, twist-release, or key-release.
The buyer should also provide control voltage/current, contact arrangement, panel cutout and mounting requirements, environment, and marking or legend requirements. These inputs prevent a quote from being based only on a product photo or incomplete description.
Pre-quotation action list:
For a controlled purchase, request the exact drawing, datasheet, and certificate package tied to the quoted model. If accessories are included, the package should also identify the matching contact blocks, legend plates, lamp elements, and mounting parts.
The final purchase decision should compare those documents with the buyer’s machine drawing, panel layout, control schematic, and destination-market requirements. If any of those inputs change, the part route should be reconfirmed.
A mushroom emergency stop button is best selected as an actuator-format and specification decision: large visible head, deliberate reset, correct contact arrangement, compatible mounting, clear marking, and current documentation. It should not be treated as proof that a complete machine emergency-stop function has been validated.
For procurement and engineering teams, the safest commercial route is to quote from the actual machine schematic, panel drawing, operating procedure, and destination-market document needs. Confirm the exact model, accessories, drawing, datasheet, and certificate package before releasing the purchase order.
No. The mushroom emergency stop button is a panel operator used within a wider control design. The complete emergency-stop function depends on the machine design, circuit architecture, validation, documentation, and applicable requirements.
Choose key-release when the buyer’s operating or maintenance procedure requires controlled reset access. Confirm key behavior, availability, and documentation from the exact model datasheet before ordering.
No. Panel cutout, mounting depth, anti-rotation features, and accessory interfaces depend on the product series and exact model. Always check the current mechanical drawing.
Some product routes may support illumination, while others may not. If illumination is needed, confirm lamp voltage, color, contact and lamp arrangement, and accessory compatibility from the exact datasheet.
The required NC and NO contacts should come from the machine schematic and control design. Do not select contact quantity based only on the mushroom-head shape.
Procurement should request the exact part number route, mechanical drawing, electrical datasheet, accessory list, and required certificate package. The buyer should then compare those documents with the panel drawing, schematic, environment, and destination-market requirements.
